You can see all what we need for WRTC.
On the desk - left to right :
1. Icom with single coax to antena selector.
2. Laptop for second operator with single cable for network.
3. Kenwood TS850
- coax for antenna selector
- cable for paddle, for DRU2 ( Voice Keyer), Cw keyer from PC, IF232,
from power supply
4. PC for main operator
- RS232 for network
- RS232 for IF232
- LPT1 for Universal Radio Interface URI2000
5. On the PC URI with Band Decoder, Voice Keyer interface, Cw interface,
IF232 interface, etc.

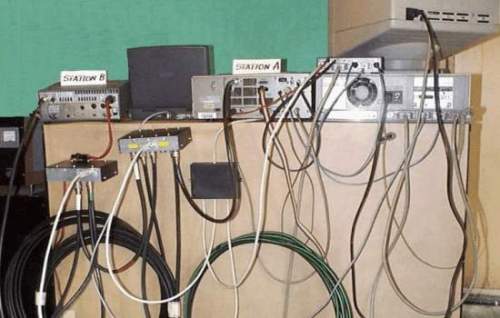

On back of the desk - left to right :
1. Antenna selector with two coax for radios and two antenna feeders.
One cable for Band Decoder via diode matrix and quick antenna revers
switch.
2. In line coax stubs switch - with two coax - one for main radio second
for antenna selector and a few coax stubs for 80m, 40m, 20m . Cable for Band Decoder via diode matrix box.
3. Diode matrix box . Cable for antenna selector, coax stubs switch,
Band Decoder, quick revers switch on the desk.

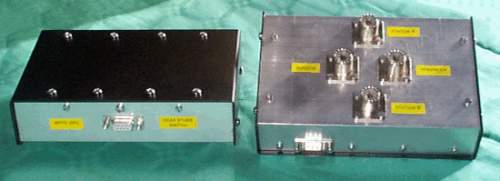

Black boxes
This is all. Small M/S station.
73 de Bogdan SP3RBR & Andrzej SP8NR
